The high-production EconoRed VP series of ovens employs advanced air mapping to increase curing efficiency and decrease emissions while curing film, sheet, adhesives, coatings and parts.
Three 9 ft (275 cm) long heating chambers totaling 15,600 watts draw filtered make-up air through double-wall housings that preheat the air while cooling the outer skin for operator safety.
Adjustable downdraft exhaust is drawn through a stainless steel or Teflon®-coated fiberglass mesh belt, preventing contaminated air from contacting heaters and other internal components, while preventing lightweight items from shifting on the belt. Contaminated exhaust is drawn through a screened receptacle for collection of condensate and/or dust when required, to an 8 in. (203 mm) flue connection.
The belt runs true by means of a low friction aligner at adjustable speeds yielding dwell times of 0.5 to 5 minutes.
The heaters maintain temperatures within +/- 1°F (+/-0.5°C) of set points, are height adjustable from 2 to 7 in. (5 to 17.7 cm), and are warranted for five years.
An optional Conveyor Air Bar cools items exiting the final heating chamber.
The oven is a modular three-chamber expansion of the company's single-chamber ERVP-VI-24 model, which can be expanded as new or in the field by adding one to two heating chambers and extending the conveyor belt, allowing capacity (belt speed) to be doubled or tripled.

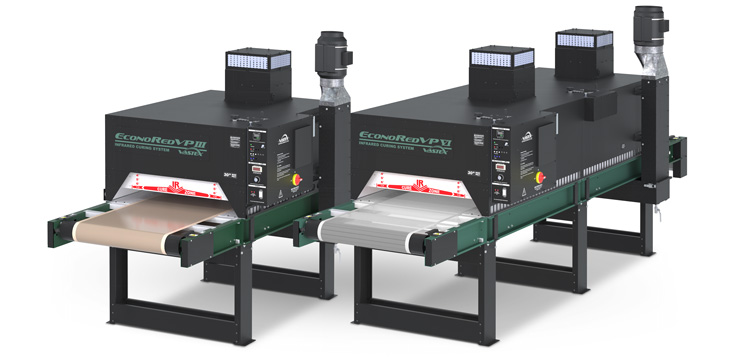

EconoRed VP-III-24
EconoRed VP-VI-24
The capacity (belt speed) of LittleRed®, EconoRed™, and BigRed® 4D Series (shown) conveyor ovens can be doubled or tripled as new or when needs increase by simply adding one or two modular heating chambers and extending the conveyor belt. This eliminates the need to invest in a larger oven than you need at the onset, and avoids the high cost of purchasing a new oven when your needs increase.
| MODEL | ER-VP-III-24 | ER-VP-VI-24 |
|---|---|---|
| Heater Warranty | 5 Year | 5 Year |
| Defect Warranty | 2 Year | 2 Year |
| Belt Speed | 3-36 FPM* (0.9-11 MPM) | 3-36 FPM* (0.9-11 MPM) |
| Exhaust (Free Air) | 724 CFM (20.5 CMM) Opt. 1,200 CFM (34 CMM) |
724 CFM (20.5 CMM) Opt. 1,200 CFM (34 CMM) |
| Exhaust Diameter | 8” (20.32 cm) Optional 10” (25.4 cm) |
8” (20.32 cm) Optional 10” (25.4 cm) |
| Overall Length | 105" (266.7 cm) | 159" (403.9 cm) |
| Overall Width | 45.2" (114.8 cm) | 45.2" (114.8 cm) |
| Overall Height | 72" (183 cm) | 72" (183 cm) |
| Belt Width | 24" (61 cm) | 24" (61 cm) |
| Chamber Length | 53" (137 cm) | 108" (275 cm) |
| Chamber Infeed Width | 34.5" (88 cm) | 34.5" (88 cm) |
| Chamber Infeed Height (adjustable) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) |
| Heat Range (@ Heater) |
0-850 F° (0-454 C°) @ 240V | 0-850 F° (0-454 C°) @ 240V |
| Total Wattage | 3 @ 3,600 = 10,800 Watts (10.8 kW) |
6 @ 2,600 = 15,600 Watts (15.6 kW) |
| Heater Size | 12" x 24" (30 x 61 cm) | 12" x 24" (30 x 61 cm) |
| Electrical Specs All ovens 50/60HZ |
240V, 1 Phase 3 wire 240V, 3 Phase 4 wire 400V, 3 Phase 5 wire 480V, 3 Phase 4 wire |
240V, 1 Phase 3 wire 240V, 3 Phase 4 wire 400V, 3 Phase 5 wire 480V, 3 Phase 4 wire |
| Electrical Connection | All amps shown are FLA (Full Load Amps), not recommended line size! Ovens on this page must be hard-wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles 210.20(a), 215.3 and 310 of the NEC code. | |
| Conveyor Belt Material | Teflon® coated fiberglass standard, Kevlar® mesh, Food Grade and other TPI available. (Limit 550°F/288°C) | |
